Introduction to tasks in pipelines

Tasks inside a pipeline come in handy when you need to run a hyperparameter optimization or parameter sweep as part of a pipeline.

All the outputs of the Task will be passed to the next node

Define a Task node in the app

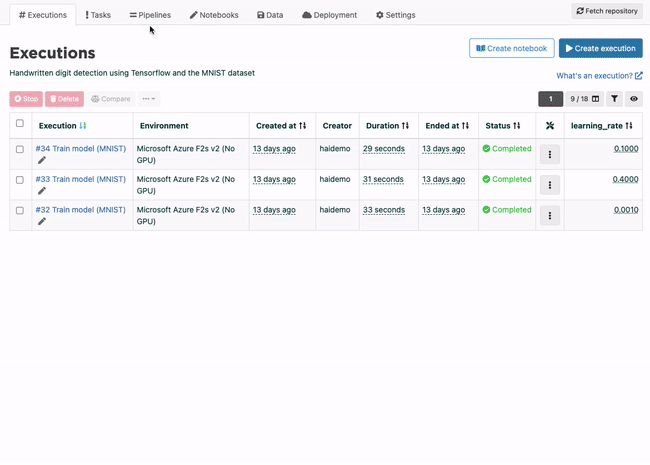

You can easily convert any existing execution node to a task node in the web ui.

• Open your project’s pipelines tab
• Create a new pipeline
• Select the right blueprint from the drop-down menu
• Click on a node that has parameters
• Click on Convert to task (below the graph)
• Scroll down to the Parameters section and configure your Task
• Create a pipeline

Define a Task node in YAML

You can define a Task in your valohai.yaml config file by setting the node’s execution type to task.

- pipeline:
    name: Training Pipeline
    nodes:
      - name: preprocess
        type: execution
        step: Preprocess dataset (MNIST)
      - name: train
        type: task
        step: Train model (MNIST)
        on-error: stop-all
        override:
          inputs:
              - name: training-set-images
              - name: training-set-labels
              - name: test-set-images
              - name: test-set-labels
      - name: evaluate
        type: execution
        step: Batch inference (MNIST)
    edges:
    - [preprocess.output.*train-images*, train.input.training-set-images]
    - [preprocess.output.*train-labels*, train.input.training-set-labels]
    - [preprocess.output.*test-images*, train.input.test-set-images]
    - [preprocess.output.*test-labels*, train.input.test-set-labels]
    - [train.output.model*, evaluate.input.model]

On-Error

By default, the whole pipeline node will stop if a single job in the Task errors. You can change this default behavior by setting the on-error property for the node.

The options are:

• stop-all: This is the default behavior. If one execution is the Task node fails the whole node will be errored and the pipeline stopped.
• continue: Continue executing the Task node, even if an execution inside the Task errors. The expectation is that at least one of the executions in the Task has been completed succesfully.
• stop-next: Stops only the nodes that follow the errored node.

On-error example

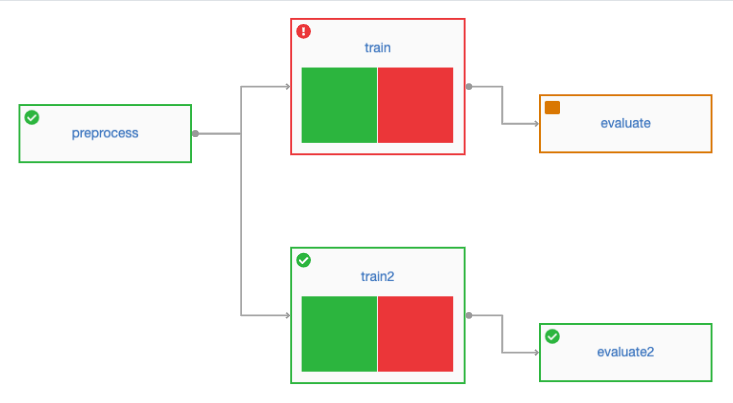

The below example shows a pipeline with two parallel task nodes.

• train is defined with on-error: stop-next
• train2 is defined with on-error: continue

Each of the task nodes run 2 executions, and in each of them, one of the executions fails. Using the on-error rules defined in the valohai.yaml the pipeline won't execute the evaluate node because the train node had one failed execution. But evaluate2 will be executed because of on-error of train2 is set to continue.

The valohai.yaml used for the pipeline looks like:

- pipeline:
    name: Training Pipeline
    nodes:
      - name: preprocess
        type: execution
        step: preprocess-dataset
      - name: train
        type: task
        on-error: stop-next
        step: train-model
        override:
          inputs:
            - name: dataset
      - name: evaluate
        type: execution
        step: batch-inference
      - name: train2
        type: task
        on-error: continue
        step: train-model
        override:
          inputs:
            - name: dataset
      - name: evaluate2
        type: execution
        step: batch-inference
    edges:
      - [preprocess.output.preprocessed_mnist.npz, train.input.dataset]
      - [preprocess.output.preprocessed_mnist.npz, train2.input.dataset]
      - [train.output.model*, evaluate.input.model]
      - [train2.output.model*, evaluate2.input.model]
